Cable clamps (reusable)

LOCKING MINI CLAMP LMC-05N

Hole mounting type

Feature

Compact, space-saving wiring clamp
Wide clamp’s opening for easy cable insertion without causing damage to cables such as optical fibers.

  • Cable clamp

Specification

List

Mounting methods Snap, (Hole diameter φ4 +0.1 0) Flammability UL94V-0 recognized product
Cable mounting direction From top Feature With lock mechanism

Different part number may have different characteristics. Please refer to the catalog for details.

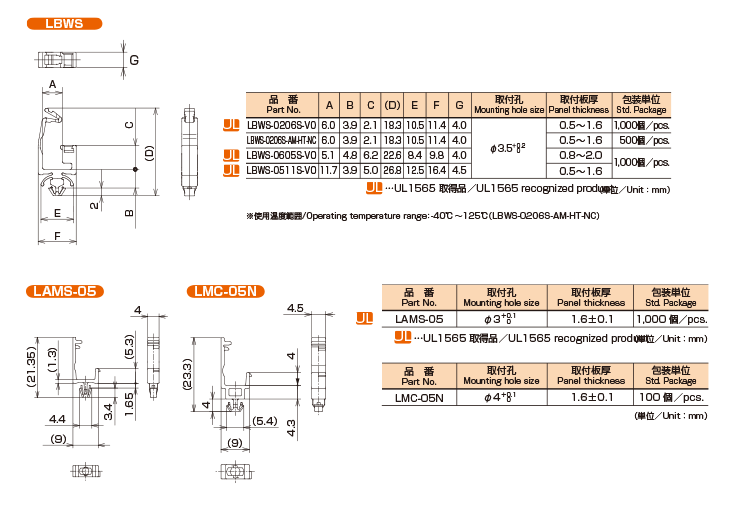

Product Dimensions

ロッキングミニクランプ LMC-05N 特性一覧

Part No. list

You can download a drawing and a test report,
add an sample to Sample Request Box per part number.

Part No. Width(Outer diameter)
(mm)
Height(Outer diameter)
(mm)
Panel thickness
(mm)
Download Data Sample Request
LMC-05N 11 9.6 1.5 ~ 1.7 Please ask

Product Inquiry

Please send us your inquiry from the query system regarding product and technical matter about it.
Suggestion of selection guide of expected Cable Clamp (Re-use Clamp) is also available.
