Thermal Resistance Simulation Software for Thermal Pads

By following the three steps in the attached figure you can determine the "combined thermal resistance" and "IC temperature rise".

STEP 1.IC setup (heating element)

IC (heating element)
IC package model number (mold resin size)

If your IC package is not in the list, enter the thermal resistance directly.
Thermal resistance (φjt) between a chip and a package* ℃/W

Enter a value between 1.00–99
Calorific value* W

Enter a value between 1.00–99

STEP 2.Setup of Heat sink

Heat sink
Heat sink

If your heatsink is not in the list, enter the thermal resistance directly.
Heat resistance​* ℃/W

Enter a value between 1.00–99
Fan orientation

Upward
Please contact us if it is not upward

STEP 3.Setup of Thermal conductive sheet

GAP dimension
Thermal conductive sheet

*When the simulation is for a thermal pad, use a thermal pad thicker than the GAP dimension.

Thermal conductive sheet*

Select a thermal conductive sheet to be used.

Thermal conductivity W/m･K
GAP dimension( t ) * mm

Enter a value between 0.10–99

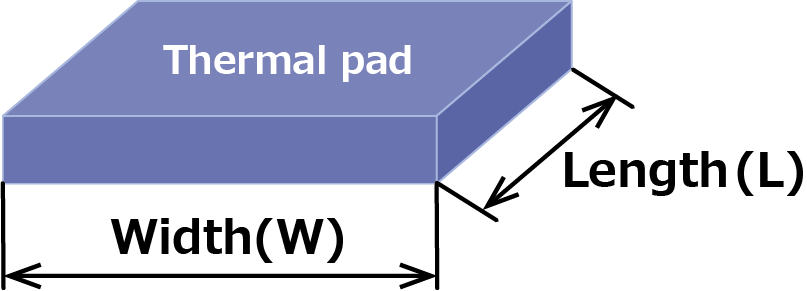

Width ( W ) * mm

Enter a value between 1.00–99
Length ( L ) * mm

Enter a value between 1.00–99

Fields marked with * are required to be entered.

Calculation result

Synthetic heat resistance

-

℃/W

IC temperature rise value

-

℃

The result is based on a simple simulation.
We can create detailed simulation according to various conditions,
please contact us for details.

Click here for inquiries
