EMC components (Noise suppression)
Grounding components
Grounding components
FG SPACER FGS-HD-3S
New EMC grounding spacer engineered with residual flux removal mechanism
Feature
Frame ground reinforcement spacer suppresses EMC noise and improves electrostatic resistance
Functions as both a spacer between the PCB and chassis as well as for frame grounding
Offers cost advantages over screw-mount PCB collar spacers by decreasing the number of components and streamlining installation
Uniquely engineered structure helps eliminate residual flux and oxidation from the PCB/metal surface.
- GND reinforcement

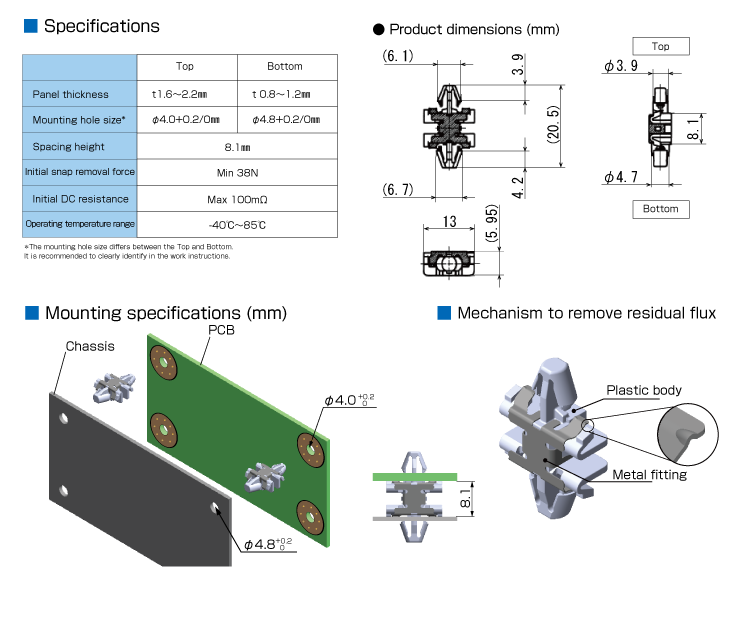

Specification
List
Different part number may have different characteristics. Please refer to the catalog for details.
Part No. list
You can download a drawing and a test report,
add an sample to Sample Request Box per part number.
| Part No. | Download Data | Sample Request |
|---|---|---|
| FGS-HD-3S |
Product Inquiry
Please send us your inquiry from the query system regarding product and technical matter about it.
EMC Design based on well-trained measurement skill and suggestion of selection guide of effective grounding parts are available.
