BROAD EFFECT CORE BREK-55-75-25-SR

Non-split type

Feature

Due to its excellent magnetic saturation resistance, the core is effective for EMC management when the common mode noise current is large.
Provides high impedance characteristics over a wide range.
Since the influence of temperature on the impedance characteristics is small, the performance is stable over a wide temperature range.
Screw fixation enables excellent vibration resistance.(Equivalent to JIS C 6 0068-2-6)
The resin case uses an UL94V-0 certified material.

  • Ferrite core (Noise filter)
  • Common mode noise suppression

Specification

List

Feature Non split type Cable types Round cable
Frequency band Broad band Usage For conducted disturbance, For radiated noise
BREK55-75-25SR

Different part number may have different characteristics. Please refer to the catalog for details.

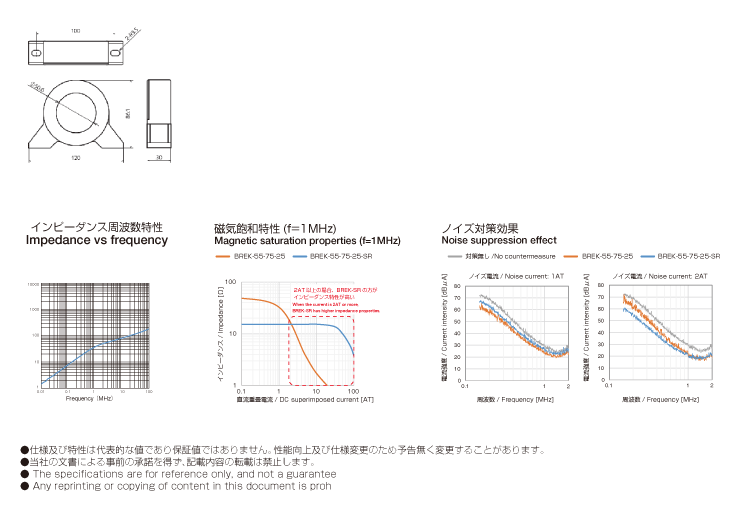

Product Dimensions

製品サイズ_BREK-55-75-25-SR
EMC solution Service

Part No. list

You can download a drawing and a test report,
add an sample to Sample Request Box per part number.

Part No. Outer diameter
(mm)
Inner diameter
(mm)
Length
(mm)
Download Data Sample Request
BREK-55-75-25-SR 120 50.6 30
