BROAD EFFECT CORE BRE-A
Oval Nanocrystalline Alloy Core
Feature
Oval-shape provides space-saving, lower profile
than ring cores.
Ideal for suppressing common mode noise in high-voltage lines,
these zero-phase reactors (common mode chokes) provide
effective noise management for cables and busbars.
With high impedance, effective for suppressing noise
across a broad frequency range.
Vibration resistance complies with in-vehicle vibration test
standard (ISO 16750-3 II)
Stable EMI performance from low to high temperature range.
Operating temperature: -40℃ to +125℃
UL94V-0 rated plastic case with excellent electrical insulation.
- Elliptically shaped nanocrystalline alloy cores
Specification
List
| Feature | Non split type | Cable types | Round cable |
|---|---|---|---|
| Frequency band | Broad band | Usage | Inverters, servo amplifiers, switching power supplies |
Different part number may have different characteristics. Please refer to the catalog for details.
Part No. list
You can download a drawing and a test report,
add an sample to Sample Request Box per part number.

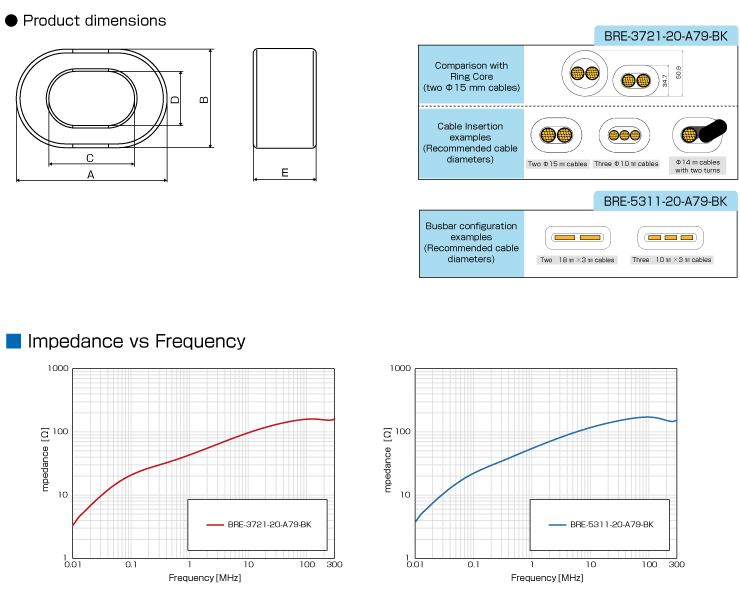

| Part No. | Outer diameter (mm) |
Inner diameter (mm) |
Length (mm) |
Drawings/3D Data/Certs | Sample Request |
|---|---|---|---|---|---|
| BRE-3721-20-A79-BK | 34.7×50.9 | 16.9×33.1 | 23.8 | ||
| BRE-5311-20-A79-BK | 28.3×69.8 | 7.0×48.5 | 23.8 |
