EMC components (Noise suppression)
Conductive tapes and sheets
Conductive tapes and sheets
TRANSPARENT CONDUCTIVE FILM WINAL
Feature
Sheet Film, improving EMC design and electro-static discharge of LCD and its peripheral components.
Electrically conductive film with superior optical transparency.
Flexible sheet film allows custom sheet cutting, punching, adhesive tape attachment etc. upon request.
Compliant with RoHS Directive 2011/65/EU
- Conductive sheet

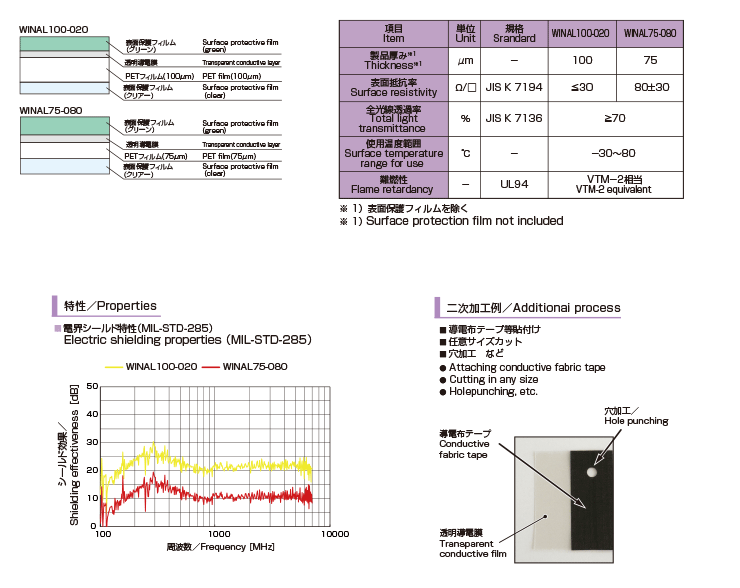

Specification
List
Different part number may have different characteristics. Please refer to the catalog for details.
Part No. list
You can download a drawing and a test report,
add an sample to Sample Request Box per part number.
| Part No. | Download Data | Sample Request |
|---|---|---|
| WINAL50-005 | Please ask | |
| WINAL100-020 | ||
| WINAL75-080 |
