TOROIDAL CORE KTR

Non-split type

Feature

Effective suppression of common mode noise covering from conducted noise (up to 30MHz) to radiated noise (over 30MHz).
For size variations, please contact our sales office

  • Ferrite core (Noise filter)
  • Common mode noise suppression

Materials

Soft ferrite (Epoxy coating)

Specification

List

Feature Non split type Cable types Round cable
Frequency band Low-frequency, High-frequency Usage For radiated noise
KTR

Different part number may have different characteristics. Please refer to the catalog for details.

EMC solution Service

Part No. list

You can download a drawing and a test report,
add an sample to Sample Request Box per part number.

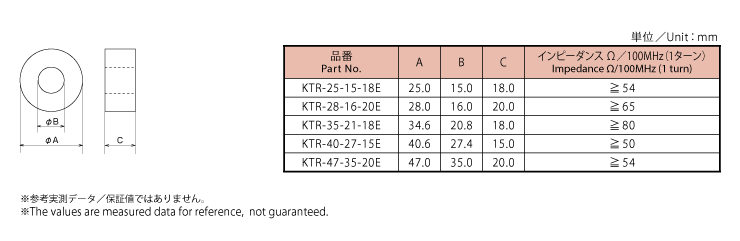

Part No. Outer diameter
(mm)
Inner diameter
(mm)
Length
(mm)
Download Data Sample Request
KTR-25-15-18E 26.7 13.4 19.5
KTR-28-16-20E 29.7 14.4 21.6
KTR-35-21-18E 35.6 20.0 18.8
KTR-40-27-15E 41.4 26.7 15.7
KTR-47-35-20E 49.1 33.1 21.6
